    Drilling tower for geological exploration
    Introduction
    Certificate
    Online Inquiry

    Parameter

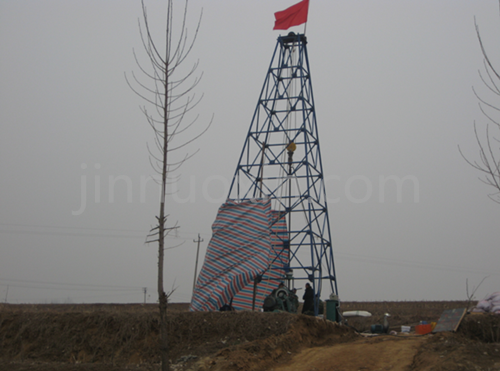

    HCX-13 DERRICK FOR DRILLING BOTH STRIGHT AND INCLINED HOLES

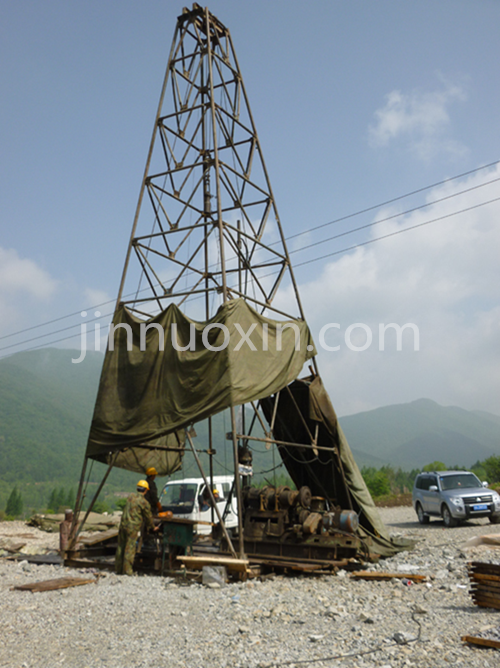

    HCX-18 DERRICK FOR DRILLING BOTH STRIGHT AND INCLINED HOLES

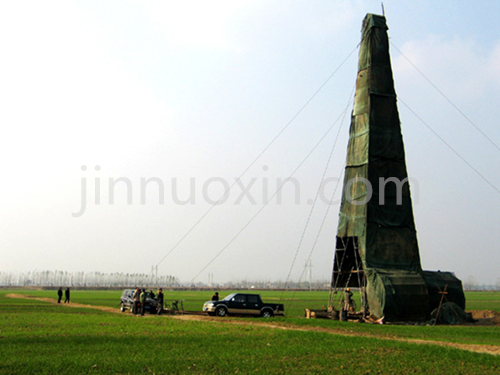

    SGZ-23 DERRICK FOR STRIGHT HOLE DRILLING

    Main Features

    1. In reasonable structure; height of each section 1.3m; With light weight of single piece, it is easy and quick for installation.

    1. In reasonable structure; height of each section 1.7m; With light weight of single piece, it is easy and quick for installation.

    1. In reasonable structure; height of each section 1.7m; With light weight of single piece, it is easy and quick for installation.

    2. With large Capacity lifting, it could meet 800m vertical hole and 600m inclined holes drilling.

    2. With large Capacity lifting, it could meet 1500m vertical hole and 1200m inclined holes drilling.

    2. With large Capacity lifting, it could meet 1800m vertical hole and 1200m inclined holes drilling.

    3. It is adaptable and the steel base could be used for variety of common longitudinal rigs with drilling depth from 300m to 800m.

    3. It is adaptable and the steel base could be used for variety of common longitudinal rigs with drilling depth from 1000m to 1500m.

    3. It is adaptable and the steel base could be used for variety of common longitudinal rigs with drilling depth from 1500m to 2400m.

    4. Occupying only a small area, the base costs less for land digging and leveling, suitable for mountain area application.

    4. Occupying only a small area, the base costs less for land digging and leveling, suitable for mountain area application.

    4. Occupying only a small area, the base costs less for land digging and leveling, suitable for mountain area application.

    Nominal Height

    13M

    18M

    23M

    Max Dead Load of Crown Block Beam

    320KN

    320KN

    320KN

    Lifting Length of Drilling Rod

    2×4.5 or 3×3

    3×4.5 or 4×3

    4×4.5 or 6×3

    Adapt to Angle of hole inclination

    75°-90°

    75°-90°

    90°

    Nominal Area of Base

    3.8M×4.7M

    4.5M×5.8M

    5.5Mx5.5M

    Number of Crowned Pulleys

    3pcs

    3pcs

    4pcs

    Max Load of Cage

    0.8KN

    0.8KN

    0.8KN

    Weight

    4450KG

    5480KG

    7500KG









    Name:
    Tel:
    E-Mail:
    Inquiry Products:
    Content:
